75mm x 75mm x 2mm Steel Post with Base Plate
75mm x 75mm x 2mm Steel Post with Base Plate

75mm x 75mm x 2mm Steel Post with Base Plate

CODE: 75 - 1090 Base Plate
$123.14 Inc. GST
$0.00
$123.14
75mm x 75mm x 2mm Steel Post with Base Plate

75mm x 75mm x 2mm Steel Post with Base Plate

$0.00 $123.14
75mm x 75mm x 2mm Steel Post with Base Plate
75mm x 75mm x 2mm Steel Post with Base Plate

75mm x 75mm x 2mm Steel Post with Base Plate

$0.00 $123.14
Length: 1090mm
Description
Description
x

Australian Made Steel Posts

The Part No One Sees.
The Part That Holds It All Straight.

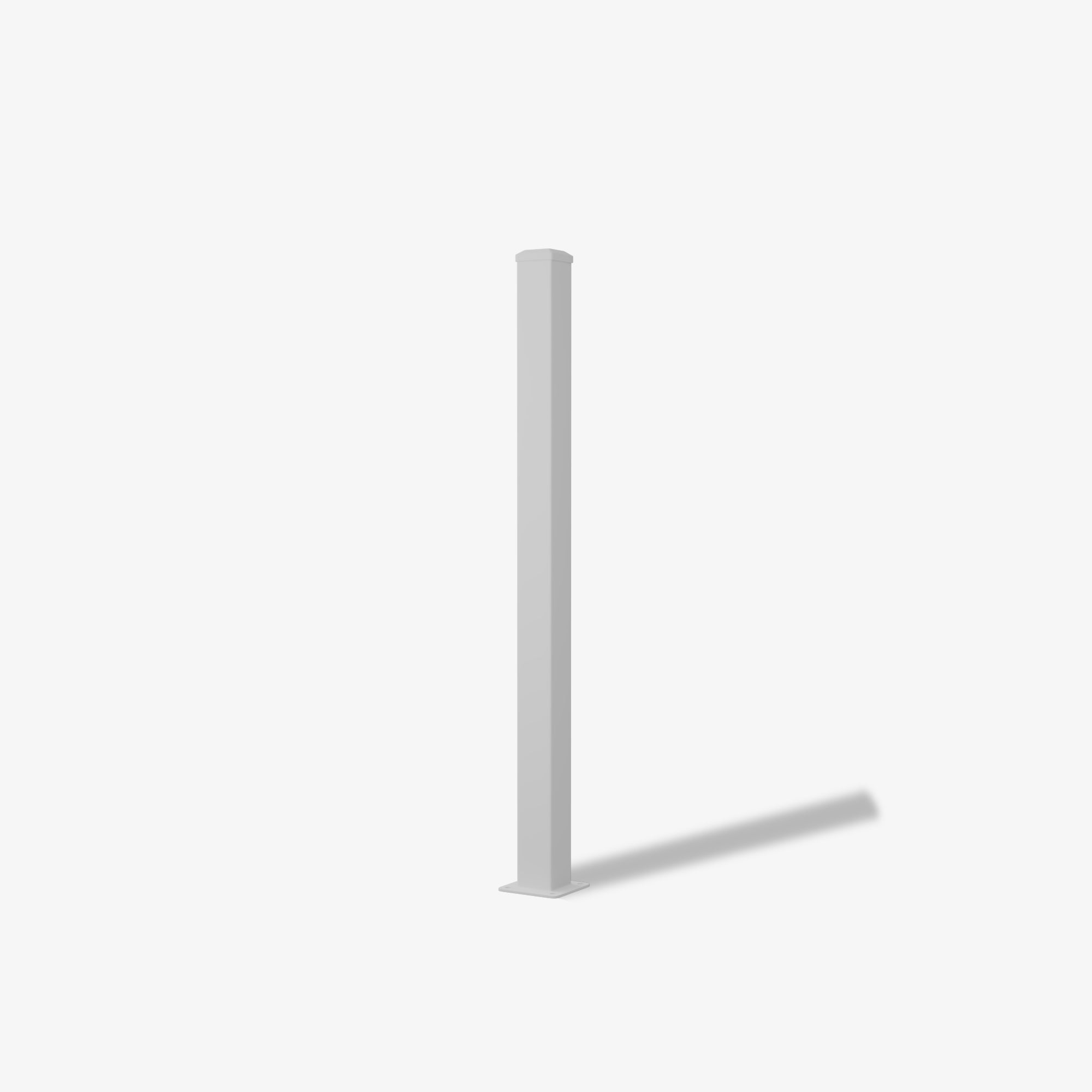

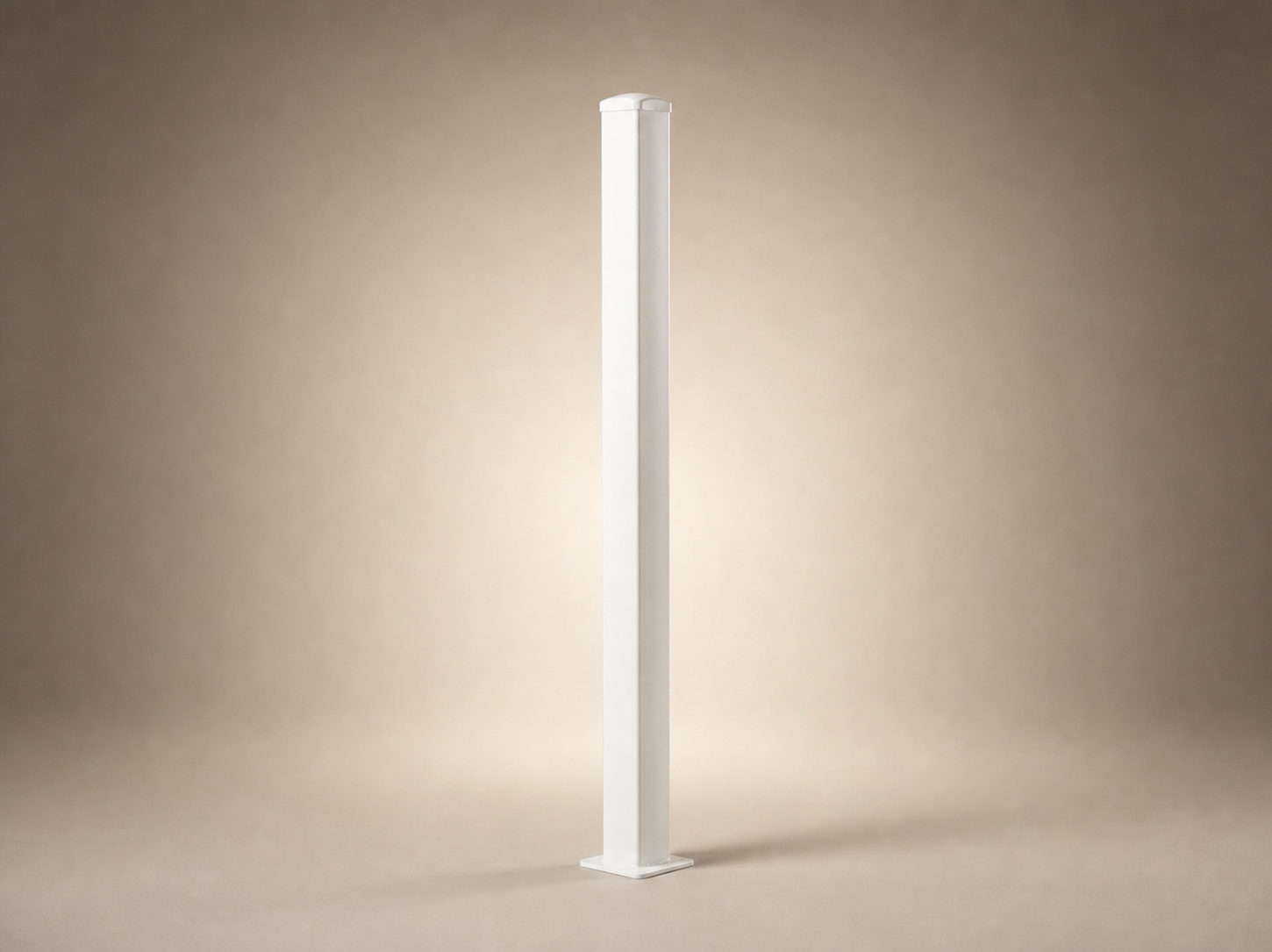

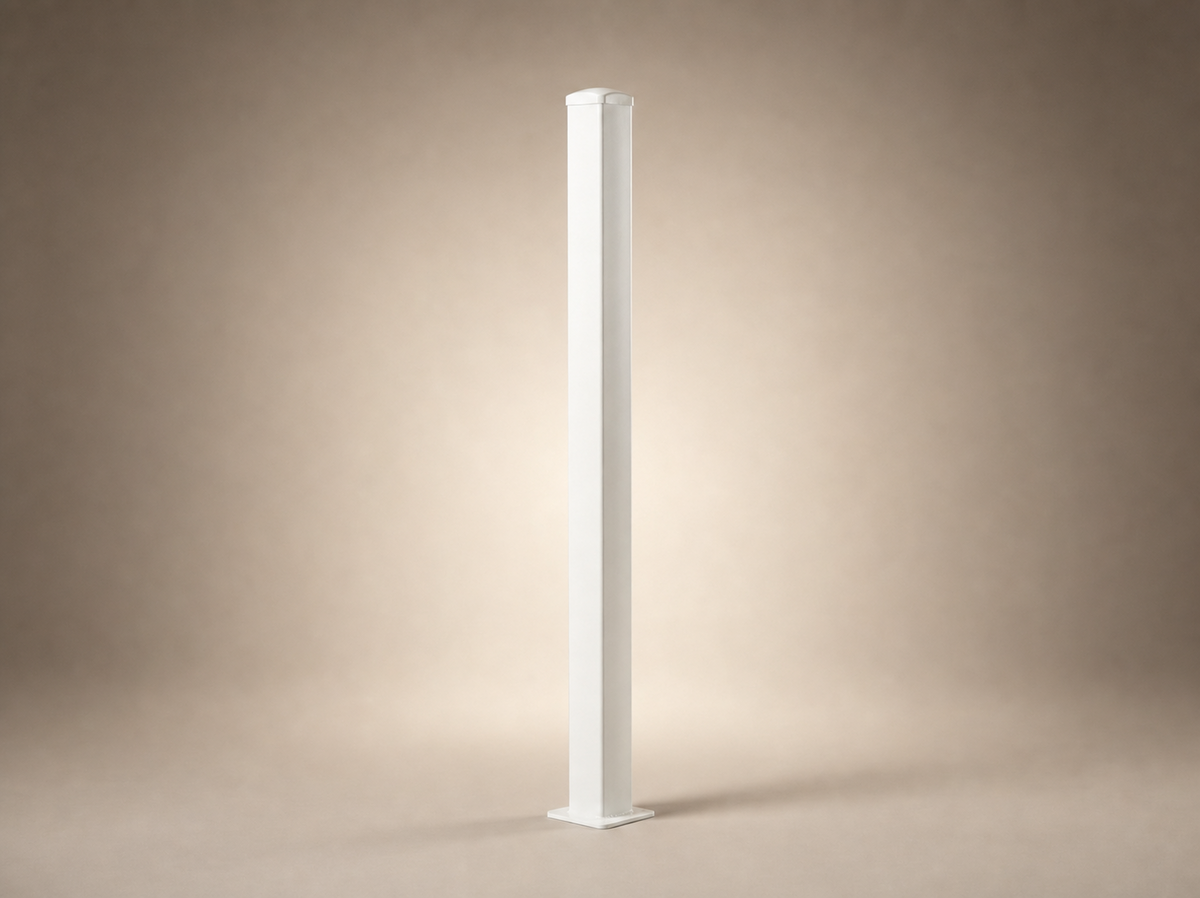

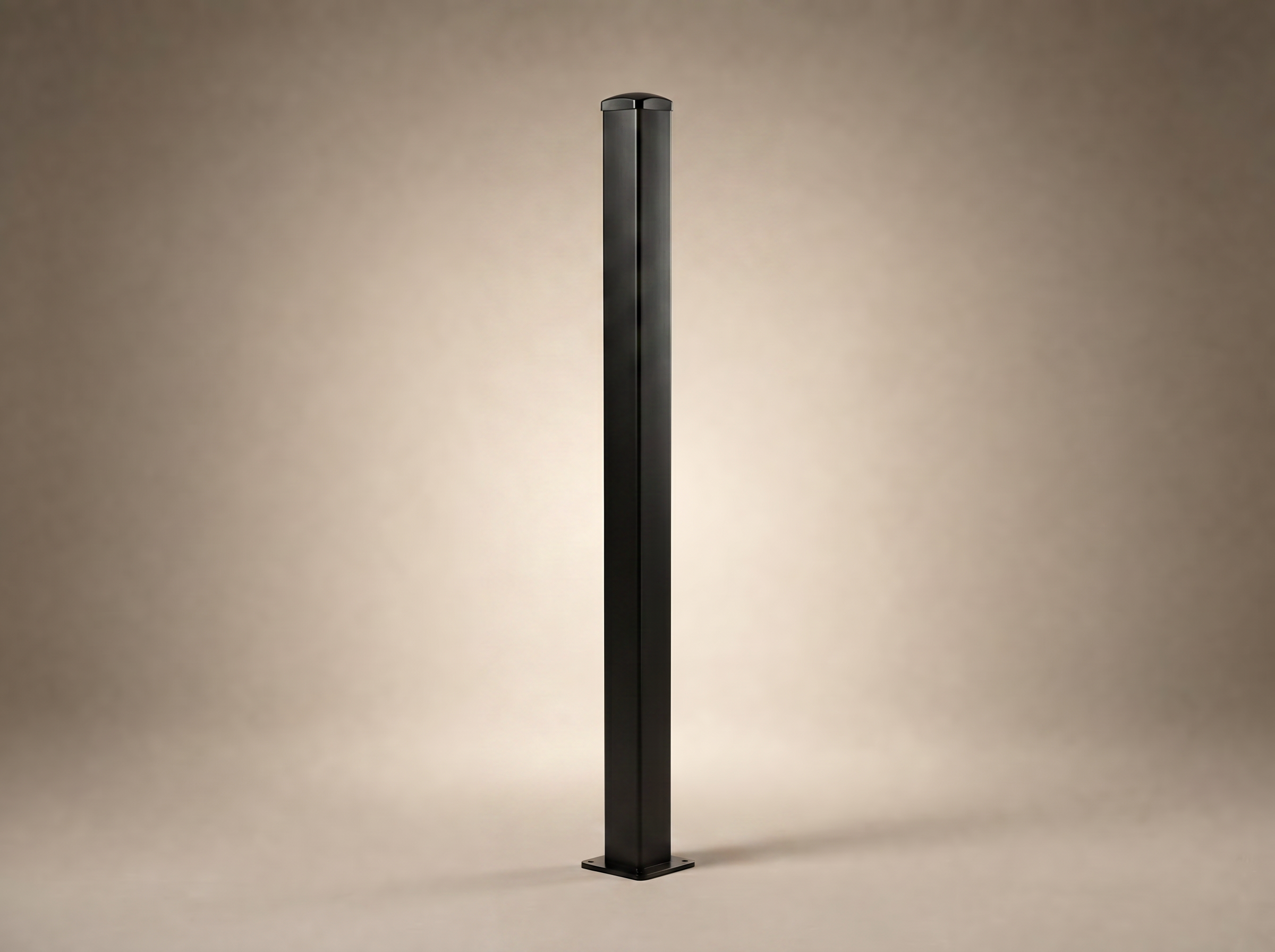

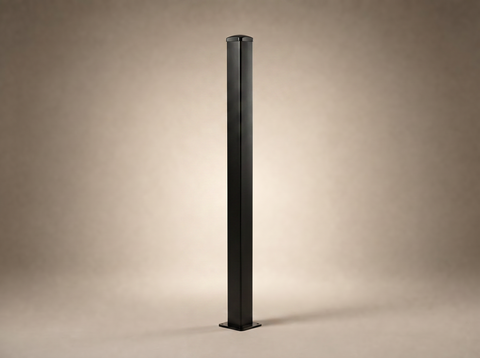

Your panels get the compliments. Your posts decide whether the line still runs true in twenty years. This is a 75 × 75 × 2mm galvanised Australian steel post with a zinc-plated 130 × 130 × 8mm base plate, supplied as a complete kit — cap, bolts and all — ready to carry fencing, balustrades, privacy screens and gates, and hold every one of them exactly where you set it.

Structure

Straight Lines Start Here

A run is only ever as true as the posts behind it — fencing, balustrade, privacy screen or gate alike. Ours are cut from 75 × 75 × 2mm galvanised Australian steel and paired with a 130 × 130 × 8mm zinc-plated base plate — a genuinely solid footprint with 4 × 12mm holes, sized for real bolt-down loads on concrete. No flex, no lean, no slow drift out of line.

Complete Kit

Nothing Left to Chase Up

Every post arrives ready to install: a colour-matched snap-on post cap finished in the same powder coat as your panels, and four dyna bolts included. No hardware run mid-install, no mismatched black cap on a Surfmist run. The detail that finishes the job is already in the box.

Longevity

Galvanised First, Then Finished

Posts sit where water sits — at ground level, against concrete, in the weather. Ours start as galvanised steel, then receive our Four-Stage Bonded Powder Coat in your choice of 26 premium colours. Protection underneath, colour on top, and a finish that holds its lustre through Australian summers and coastal air alike.

Engineering Specifications

75 × 75 × 2mm Post with Base Plate

Post section 75 × 75 × 2mm SHS
Material Galvanised Australian steel
Base plate 130 × 130 × 8mm, zinc plated
Fixing holes 4 × 12mm
Application Bolt-down to concrete slabs, footings and other hard surfaces
Available lengths 1090mm, 1350mm, 1650mm, 1800mm, 2100mm
Included Colour-coded snap-on post cap + 4 × dyna bolts
Finish Four-Stage Bonded Powder Coat, 26 premium colours
Origin Designed, fabricated and finished in Tamworth, NSW

Choosing Your Post

Match the Post to the Panel

Post size is a structural decision, not a style one. Taller and wider panels carry more wind load, and gates carry more again — so both the section and the length change with the job. Here is how our post lengths line up with our standard panel heights.

Post length Suits panel height Post above panel Clearance below panel
1090mm 940mm 70mm 80mm
1350mm 1200mm 70mm 80mm
1650mm 1500mm 70mm 80mm

1800mm and 2100mm lengths are also stocked for gate posts, sloping sites and custom panel heights.

Mason & Dean post length guide showing 1090mm, 1350mm and 1650mm posts against 940mm, 1200mm and 1500mm high panels
  • Working to a slab, deck, path or existing footing? This bolt-down base plate post is the straightforward choice.
  • Setting into soil or new concrete? Our matching post for concreting anchors below ground.
  • Finishing against a wall, pier or house? Our wall-mount post closes the run neatly.
  • Not certain? Send us your run length, panel heights and site photos and our product specialists will spec it with you.

Installation

Straightforward, Even First Time

Position the post where it needs to sit and bring it plumb with a level. Mark your fixing points through the base plate, drill your holes, then fix down with the dyna bolts supplied. Check plumb once more, tighten evenly, and snap the colour-matched cap into place.

That's it. And if anything about your site is unusual — a slope, a tight boundary, an awkward corner — call us before you start. We'd rather spend ten minutes on the phone than have you buy twice.

Why Mason & Dean

The People Who Answer the Phone
Are the People Who Designed It

Mason & Dean is founder-led. The people who answer the phone are the ones who started the business and drew every profile in the range, so the advice you get is first-hand rather than read off a screen. Every post is made in our Tamworth workshop, colour-matched to the fence panels, gates and balustrades it supports, and backed by our 10-Year Warranty.

Posts rarely get chosen on their own. If you're still finalising the run, browse the matching fence panels, balustrades, privacy screens and gates that these posts are built to carry — all finished in the same 26 premium colours.

Need a hand sizing your posts? Call our product specialists on (02) 6762 5249 or send us your plans.
